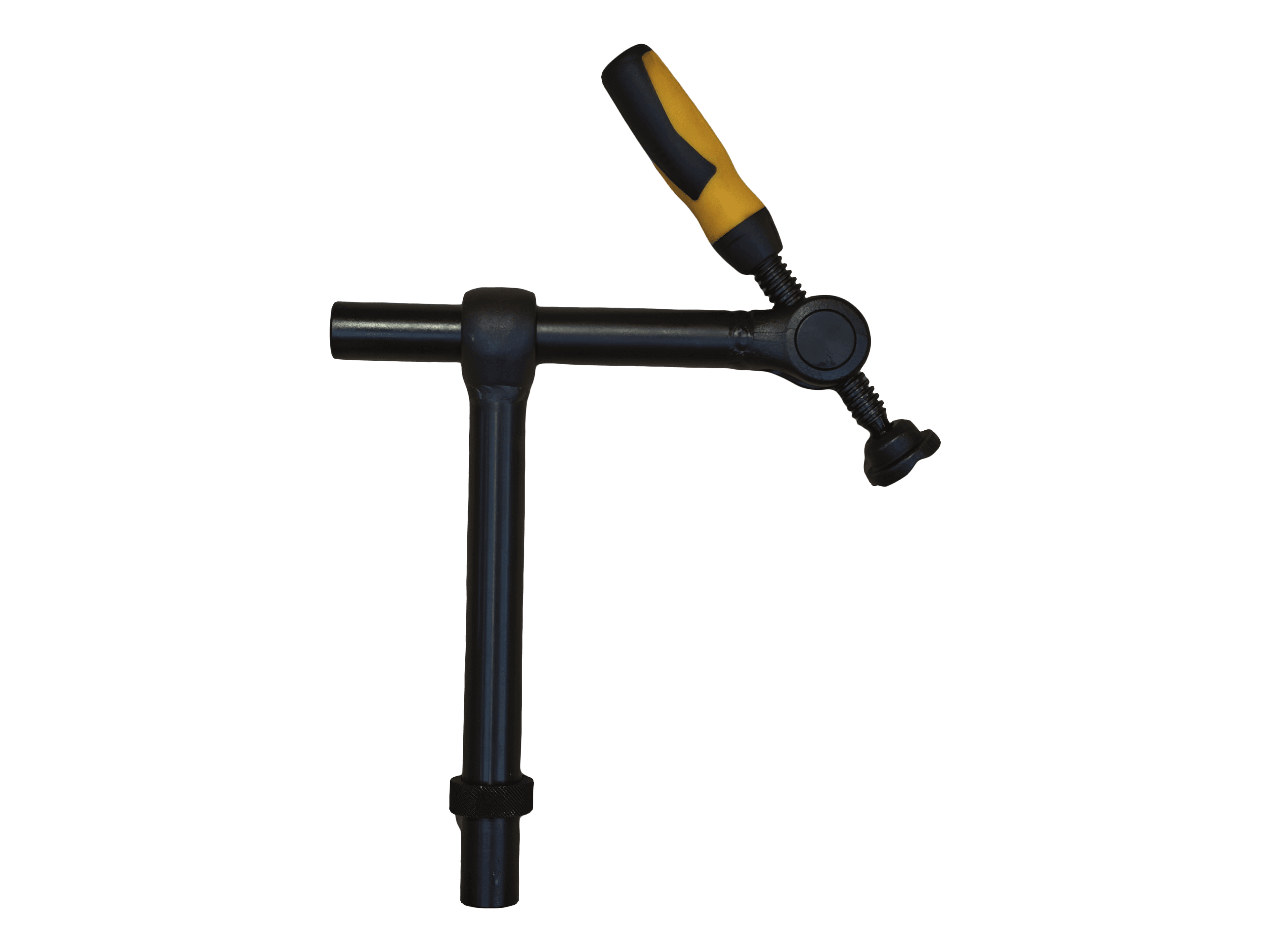

Pipe Clamp 45 Degrees

€55.66 incl. 21% VAT

All prices excl. VAT. EU businesses outside the Netherlands pay 0% VAT, reverse charge applies.

Checking availability…

The same pipe clamp as the standard version, but with the rotating handle and prism turned 45 degrees. This lets you clamp at an angle, for example material that has to lie diagonally against a stop. The cylindrical shaft fits any hole in the welding table. You set the height with the insertion depth, and the arm slides along the shaft to the right position. Reach depth 220 mm, reach height 270 mm. QPQ-nitrided. Fits DCT welding tables and tables from Siegmund and Demmeler with Ø28 mm bores. The pipe clamp 45 degrees is included in all our tool sets.
