Square 500 mm

€313.39 incl. 21% VAT

All prices excl. VAT. EU businesses outside the Netherlands pay 0% VAT, reverse charge applies.

Checking availability…

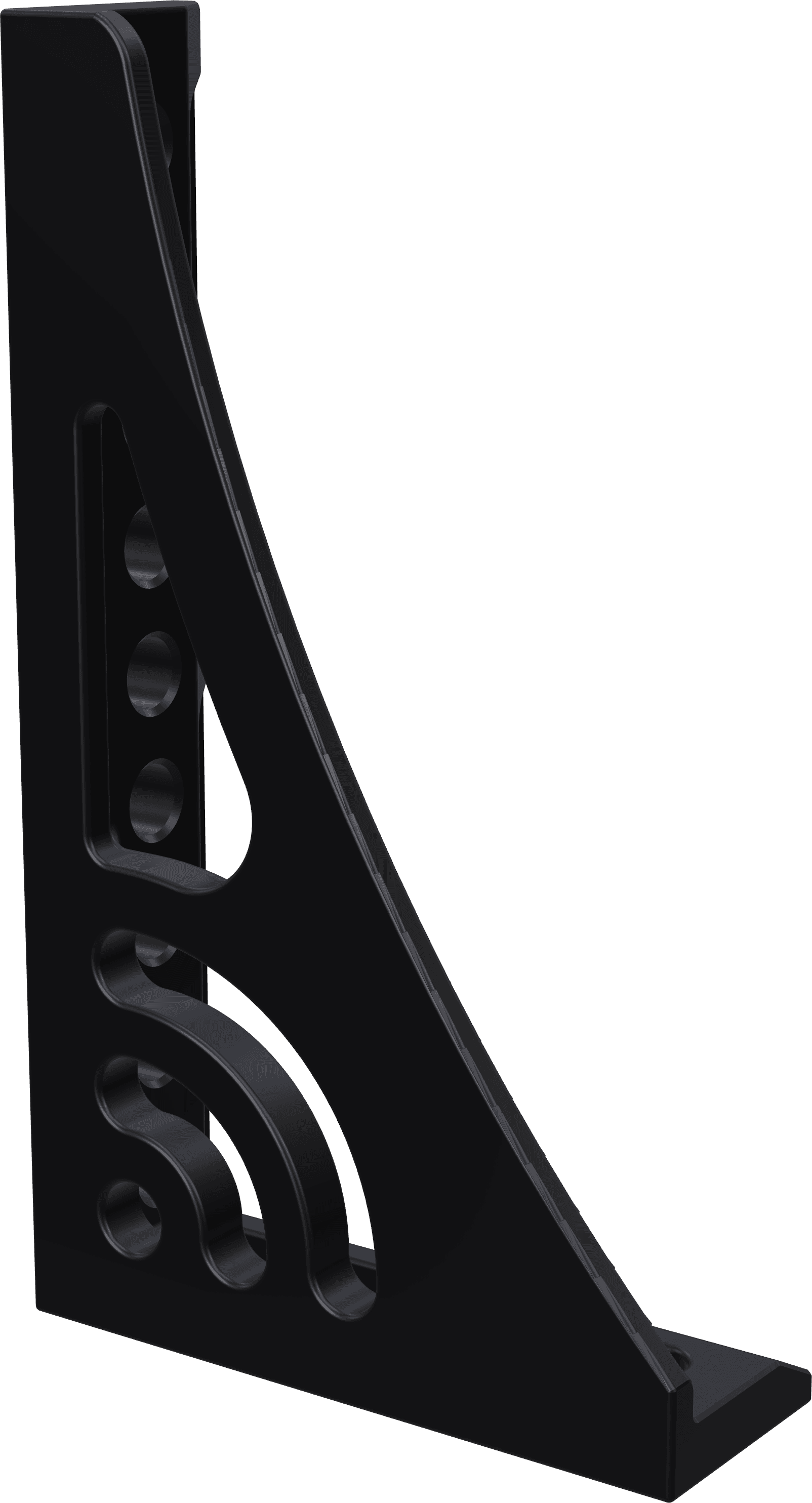

Cast iron square for the Ø28mm system, for height extension on the welding table and 90-degree positioning. The side face has both holes and slots. In the holes you fit clamps and stops at a fixed position; in the slots you slide a bolt to any position you need. Dimensions: 500 × 290 × 100 mm. You fix the square to the table with clamping bolts. QPQ-nitrided for a wear-resistant, corrosion-resistant surface. Fits DCT welding tables and tables from Siegmund and Demmeler with Ø28 mm bores.
