Welding Tables
Ø28mm Welding Table 2000×1500 mm
From€3,981excl. VAT
All prices excl. VAT. EU businesses outside the Netherlands pay 0% VAT, reverse charge applies.
The spacious all-rounder: 2000 × 1500 mm offers enough surface for railings, gates, chassis parts and larger frames, while the table still fits well in most workshops. The format many fabrication shops settle on. Solid S690QL high-performance steel, gas-nitrided to 800 HV. The nitriding sits deep in the material rather than in a coating, so the grid does not wear away and stays flat even under heavy clamping forces. Fully compatible with the Ø28mm system from Siegmund and Demmeler. Choose EG (one hole per grid cell) or DG (diagonal holes for 60% more clamping options) below and configure with or without legs.
Please select all options to continue.
Website prices are always the lowest, excl. VAT. EU businesses outside NL pay 0% VAT (reverse charge).
Fast delivery
Quality guarantee
Compatible 28mm
| Material | S690QL hooggelegeerd staal |
| Nitriding | Gas-genitreerd (800 HV) |
| Dimensions | 2000 × 1500 mm |
| Legs | 4 in hoogte verstelbare poten |
| Model | M800 |
| Hole Diameter | Ø28 mm |
| Grid Spacing | 100 mm center-to-center |
| Material Thickness | 25 to 27 mm |
| System | Ø28 mm |
Frequently asked questions
About the welding table
Our Ø28mm welding tables are made from S690QL high-alloy steel, gas-nitrided to 800 HV surface hardness. This results in an extremely hard and wear-resistant surface that lasts for years.
EG (single hole) has one hole per 100×100 mm grid cell. DG (double hole) has diagonal holes relative to the EG pattern, providing 60% more clamping options. You can see the difference directly in the 3D model.
Yes. The Ø28mm grid is fully bidirectionally compatible: DCT clamping tools fit Siegmund and Demmeler tables, and their accessories fit DCT tables. You can continue using your existing tooling.
Some other brands apply an additional oxide layer after nitriding, giving a dark colour. DCT tables are gas-nitrided without any additional coating: the hardness is in the steel itself, up to 1 mm deep. The lighter colour is not a sign of less treatment.
Available from 1000x1000 mm to 3000x2000 mm, in EG and DG configuration. All Ø28mm tables are M800 (S690QL, 800 HV). Custom sizes are available on request.
Tables in stock are typically dispatched within 1 business day. In the Netherlands we deliver with our own transport, often within 24 hours. To the rest of Europe, orders are typically in transit within 1–2 business days.
Personal advice
Questions about the configuration? We're happy to help.
Related products

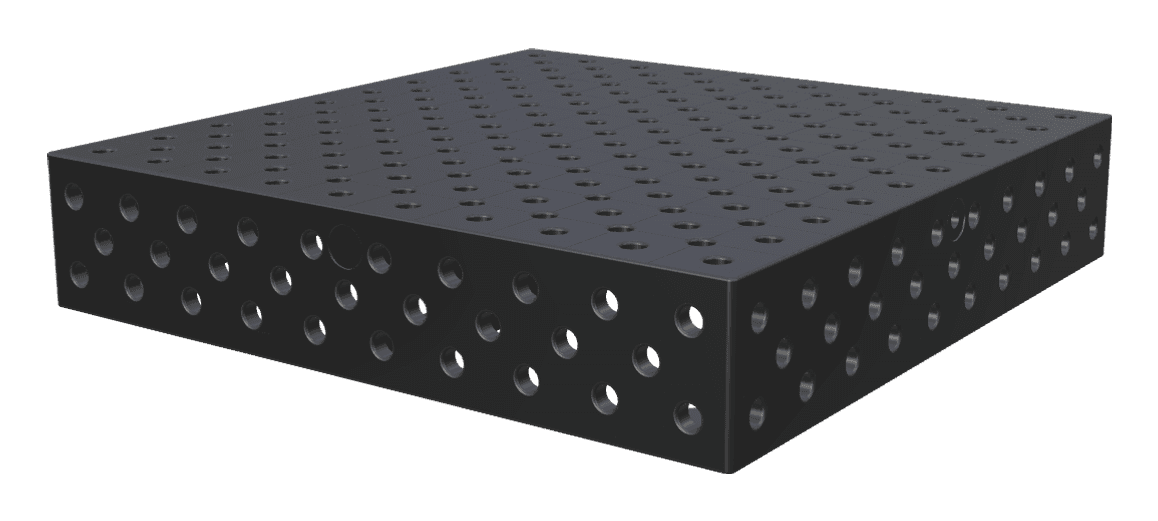

Welding Table Ø28mm System
From€1.800excl. VAT
Ø28mm Welding Table 1000×1000 mm
From€1.800excl. VAT

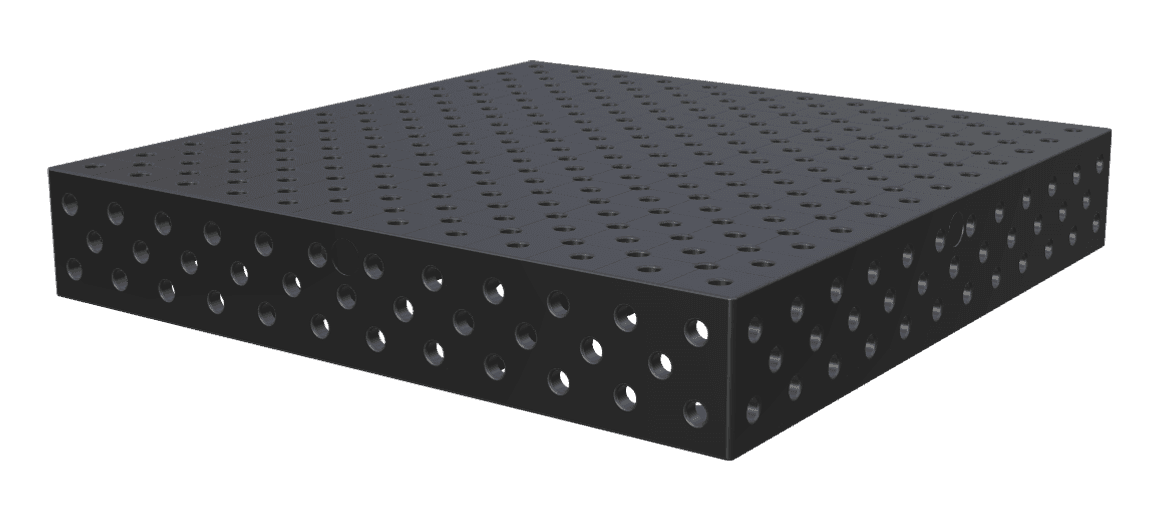

Ø28mm Welding Table 1200×1200 mm
From€2.414excl. VAT

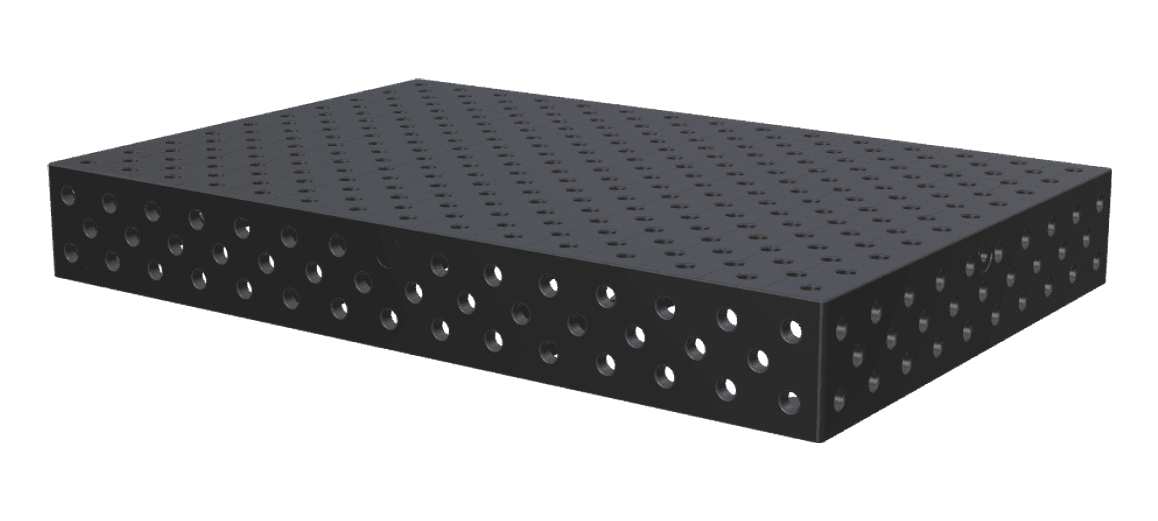

Ø28mm Welding Table 1500×1000 mm
From€2.591excl. VAT

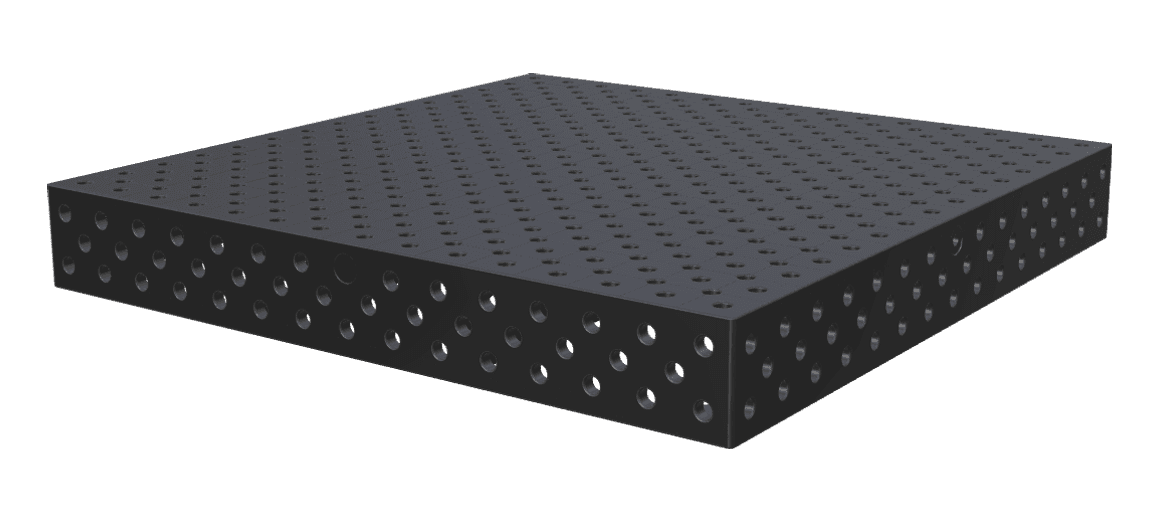

Ø28mm Welding Table 1500×1500 mm
From€3.410excl. VAT
Ø28mm Welding Table 2000×1000 mm
From€3.143excl. VAT

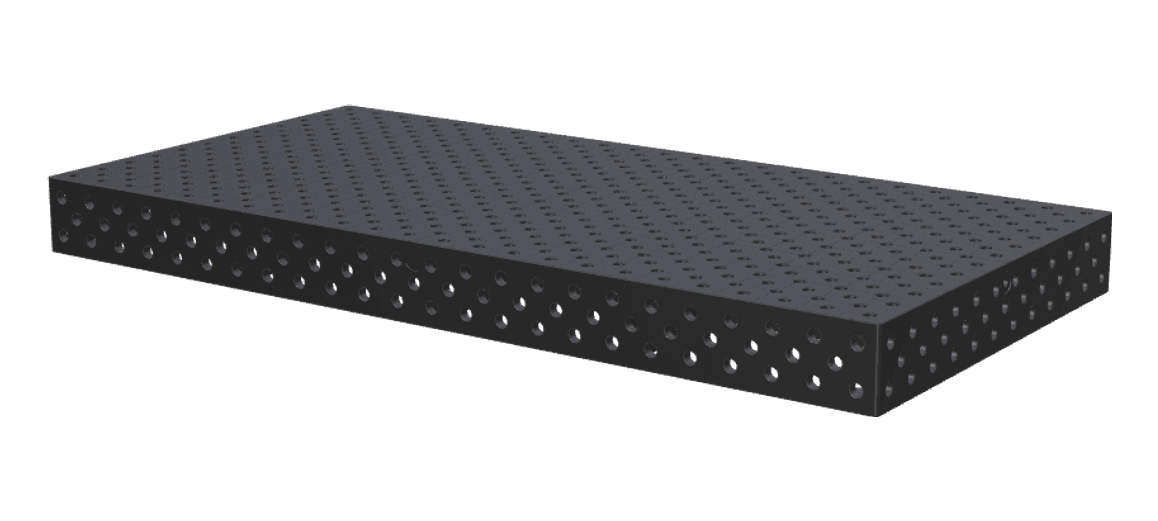

Ø28mm Welding Table 2400×1200 mm
From€3.947excl. VAT

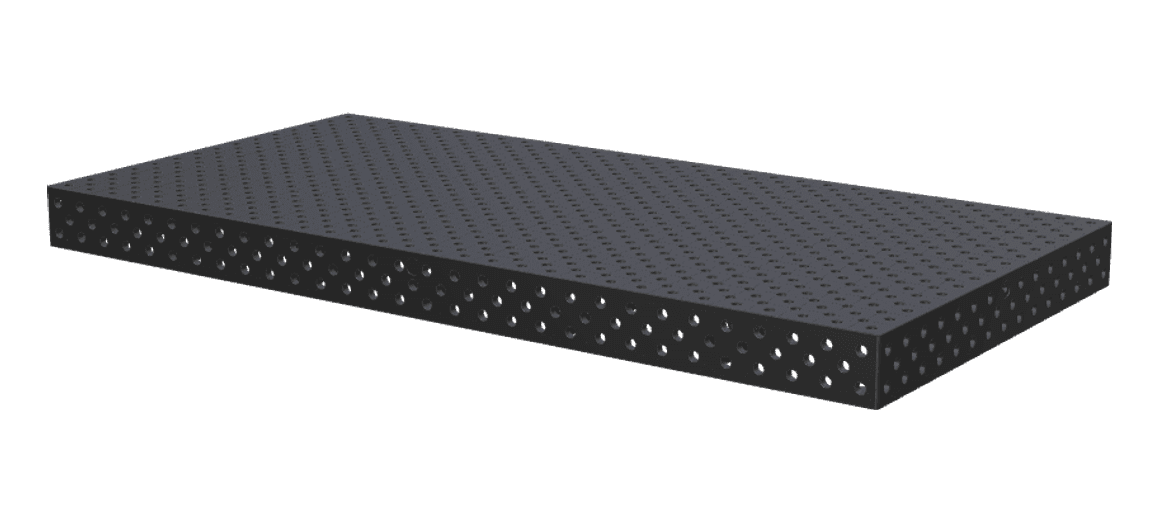

Ø28mm Welding Table 3000×1500 mm
From€5.980excl. VAT

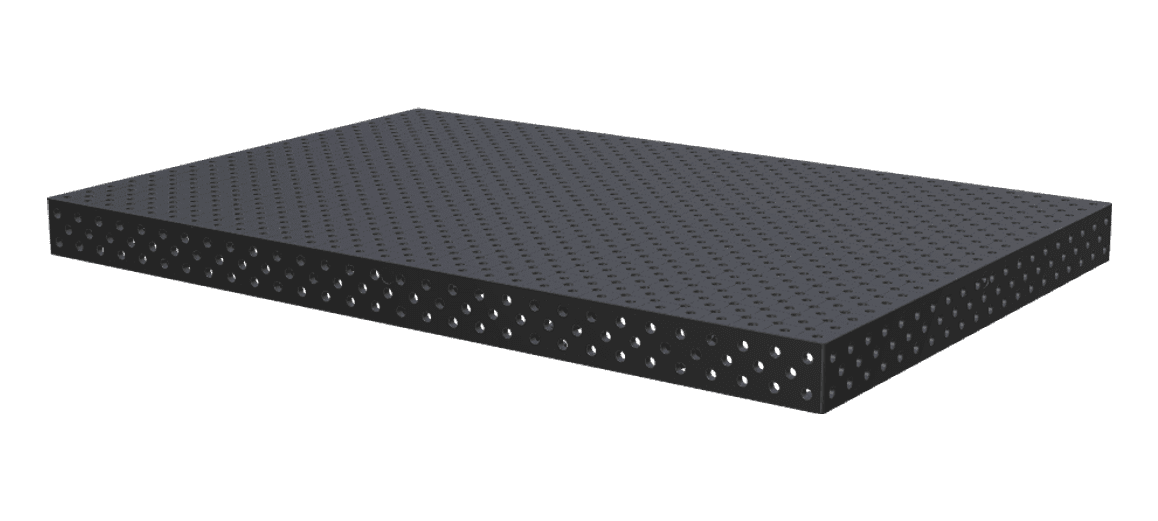

Ø28mm Welding Table 3000×2000 mm
From€6.989excl. VAT

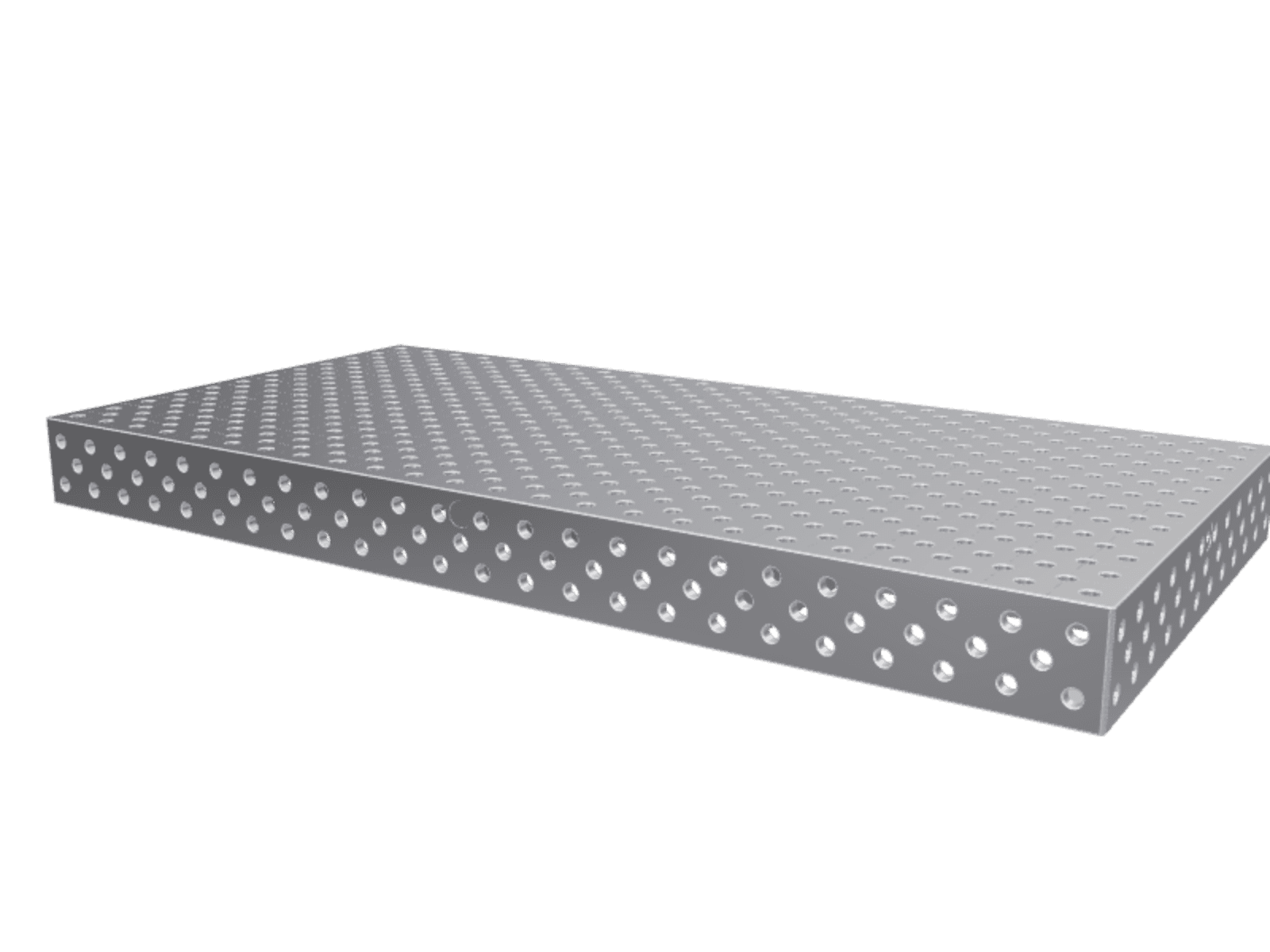

Stainless Steel Welding Table Ø28 System
€6.900excl. VAT

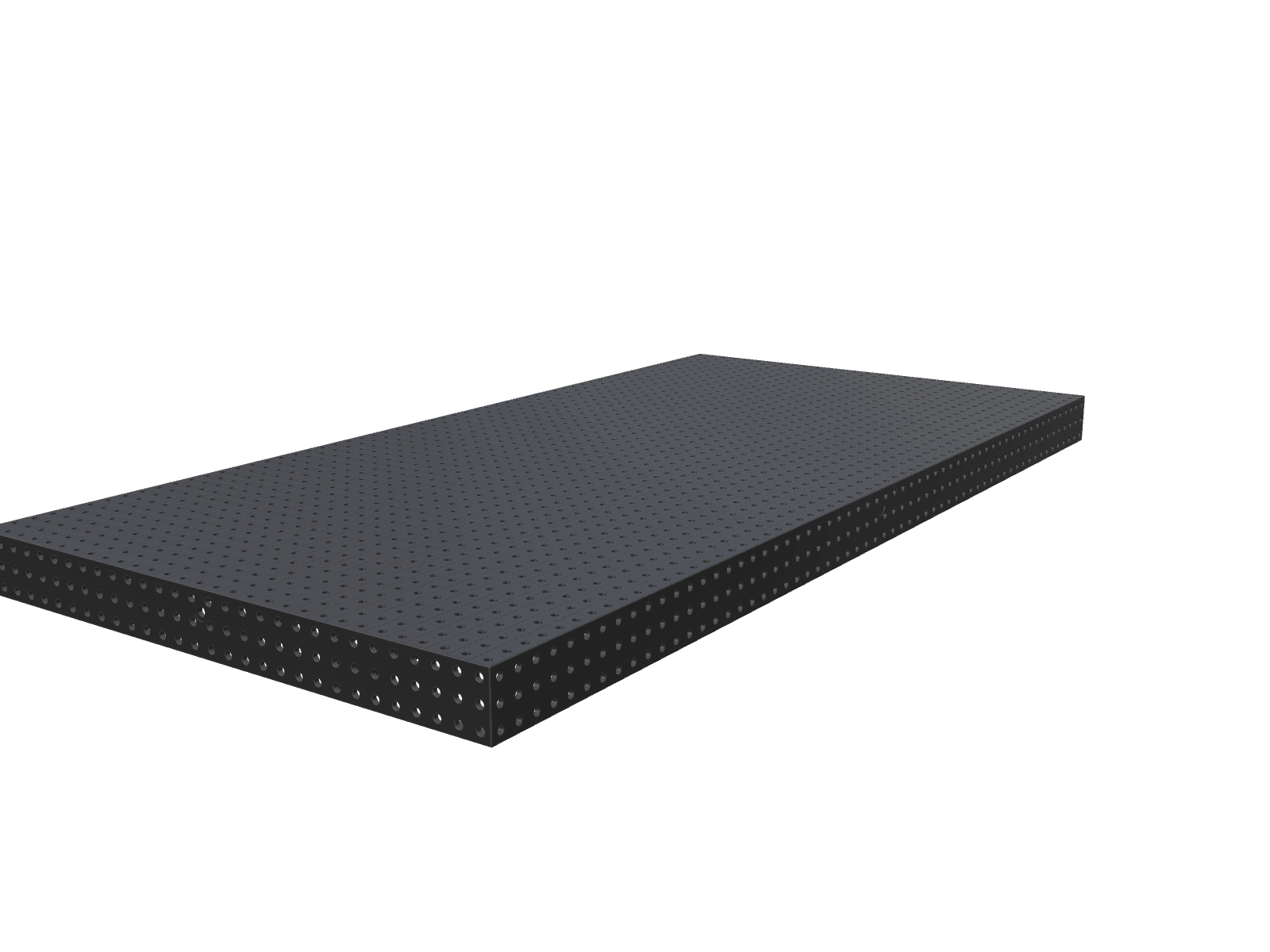

Ø16 System Welding Table 3000×1500×150
