Welding Tables

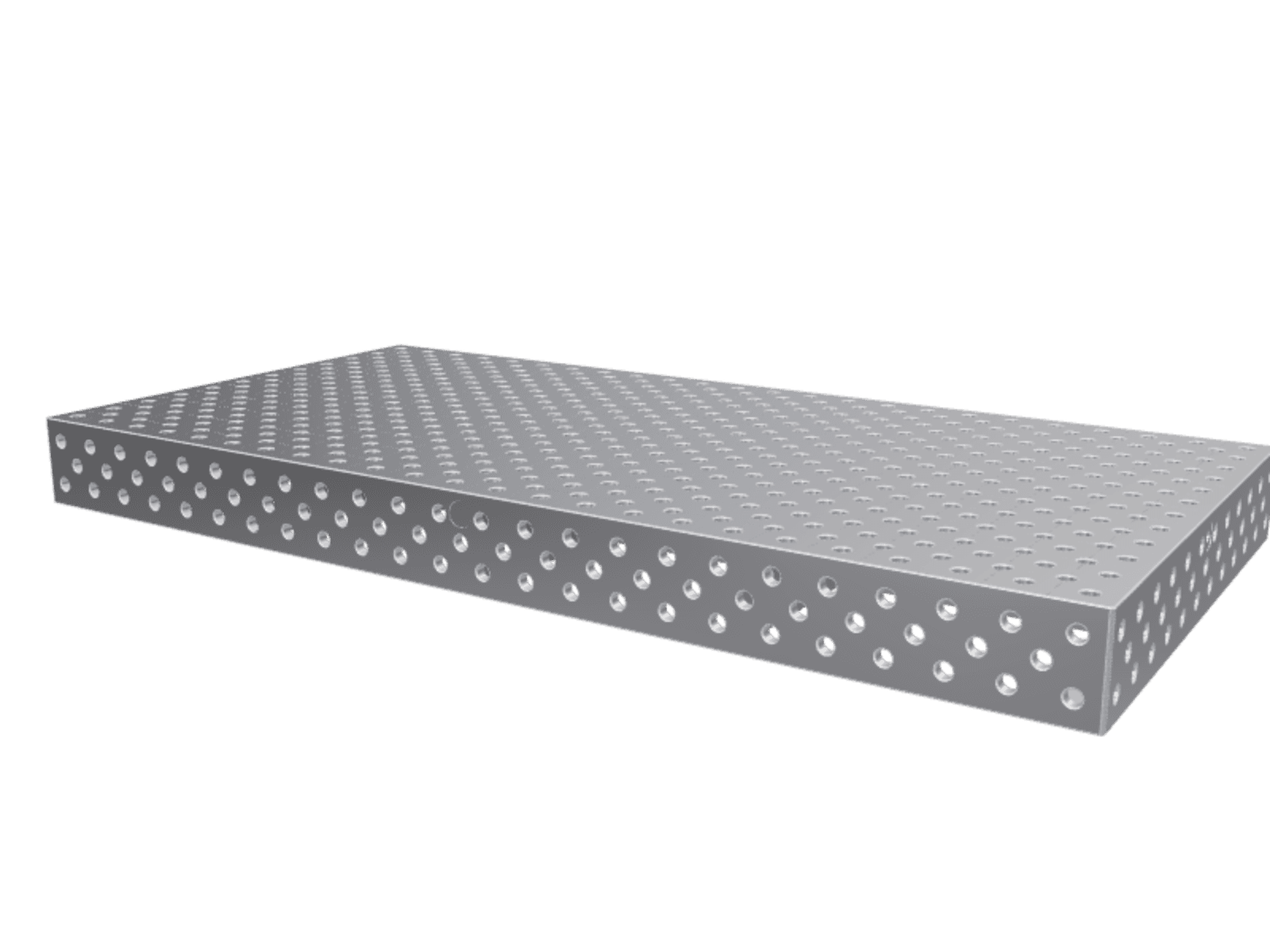

Stainless Steel Welding Table Ø28 System
€6,900€7,600excl. VAT
€8,349.00 incl. 21% VAT
All prices excl. VAT. EU businesses outside the Netherlands pay 0% VAT, reverse charge applies.
Checking availability…
For welding in the food, pharma and chemical industries, where stainless steel is mandatory and material transfer or contamination of the workpiece is not an option. CNC-milled from solid 304 stainless steel. No surface treatment needed: stainless steel is naturally corrosion-resistant and withstands cleaning agents, disinfection and acidic environments. You can clean the table straight after use without damaging the surface. Ideal for building machines, frames and parts that end up in hygienic production environments. It is also the right choice if you weld stainless steel workpieces: the work then does not come into contact with ordinary steel. Built on the Ø28mm system, with a DG grid at 100 mm centre-to-centre. Compatible with standard Ø28mm clamping tools. Dimensions: 2400 × 1200 mm. Available with or without legs.
Please select all options to continue.
Website prices are always the lowest, excl. VAT. EU businesses outside NL pay 0% VAT (reverse charge).
Fast delivery
Quality guarantee
Compatible 28mm
| Material | 304 RVS |
| Dimensions | 2400 × 1200 mm |
| Series | DG — dubbel gat |
| Hole Diameter | Ø28 mm |
| Grid Spacing | 100 mm center-to-center |
| Material Thickness | 25 to 27 mm |
| Ruler | Lines on 1 length and 1 width side |
| System | Ø28 mm |
Frequently asked questions
About the welding table
Our Ø28mm welding tables are made from high-grade S690QL steel, gas-nitrided to 800 HV surface hardness. This results in an extremely hard and wear-resistant surface that lasts for years.
EG (single hole) has one hole per 100×100 mm grid cell. DG (double hole) has diagonal holes relative to the EG pattern, providing 60% more clamping options. You can see the difference directly in the 3D model.
Yes. The Ø28mm grid works in both directions: DCT clamping tools fit Siegmund and Demmeler tables, and their accessories fit DCT tables. The only exception: clamping bolts are not interchangeable between DCT and Demmeler. You can continue using your existing tooling.
Some other brands apply an additional oxide layer after nitriding, giving a dark colour. DCT tables are gas-nitrided without any additional coating: the hardness is in the steel itself, up to 1 mm deep. The lighter colour is not a sign of less treatment.
Available from 1000x1000 mm to 3000x2000 mm, in EG and DG configuration. All Ø28mm tables are M800 (S690QL, 800 HV). Custom sizes are available on request.
Tables in stock are typically dispatched within 1 business day. In the Netherlands they are often with you within 24 hours. To the rest of Europe, orders are typically in transit within 1–2 business days.
Personal advice
Questions about the configuration? We're happy to help.
Related products

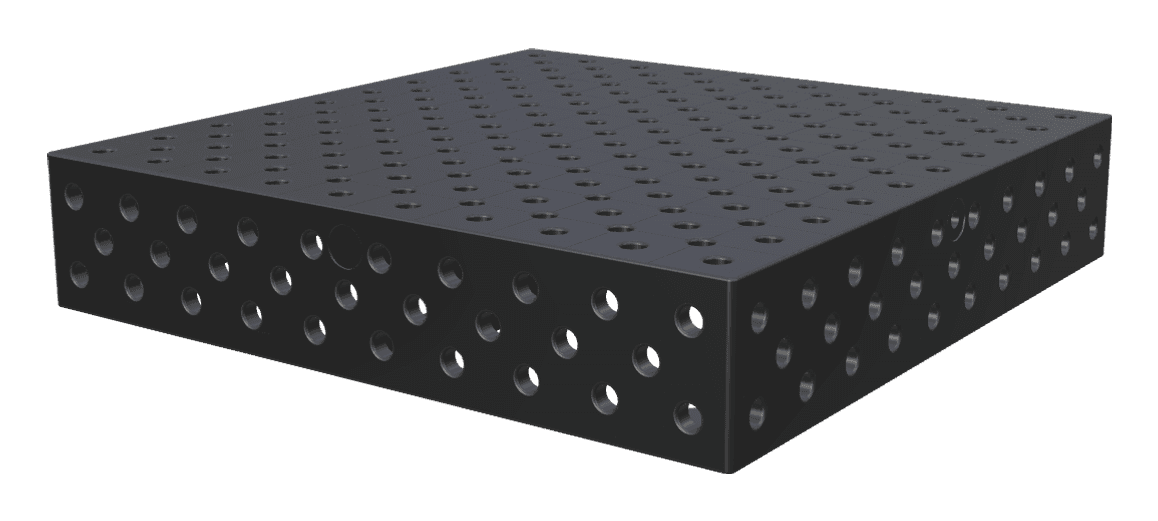

Welding Table Ø28mm System
From€1.800excl. VAT
Ø28mm Welding Table 1000×1000 mm
From€1.800excl. VAT

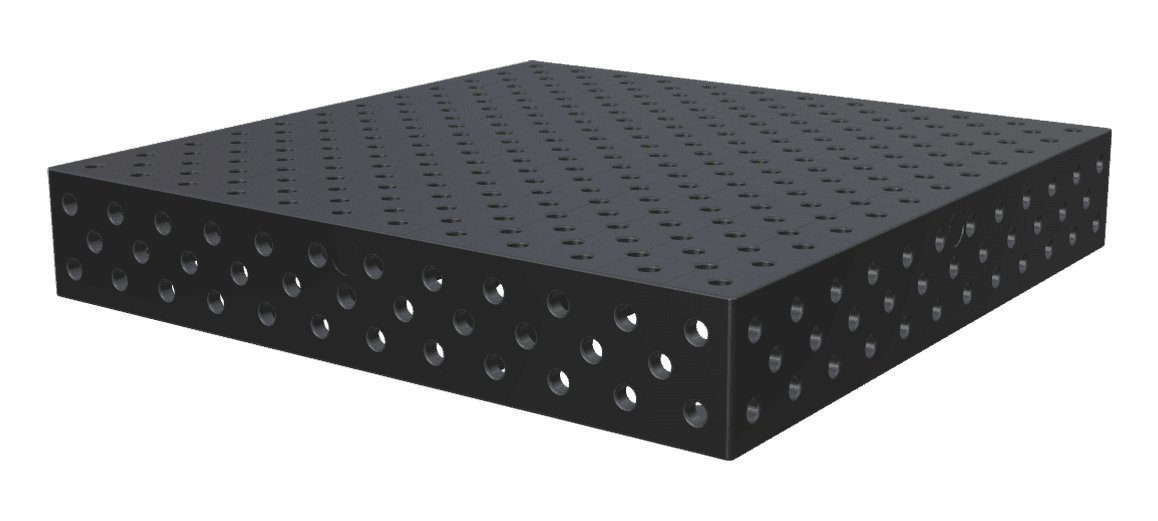

Ø28mm Welding Table 1200×1200 mm
From€2.414excl. VAT

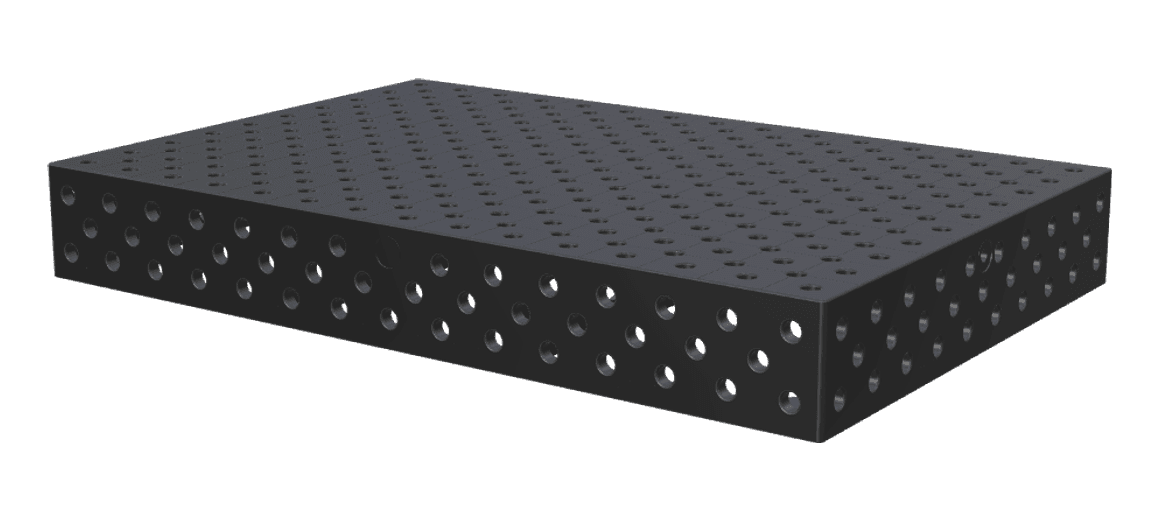

Ø28mm Welding Table 1500×1000 mm
From€2.591excl. VAT

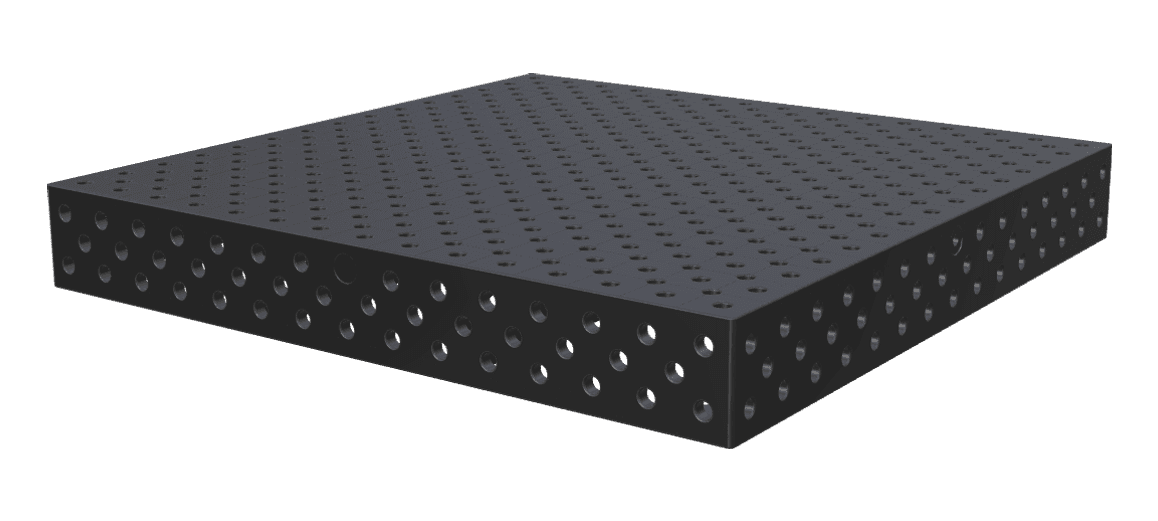

Ø28mm Welding Table 1500×1500 mm
From€3.410excl. VAT
Ø28mm Welding Table 2000×1000 mm
From€3.143excl. VAT

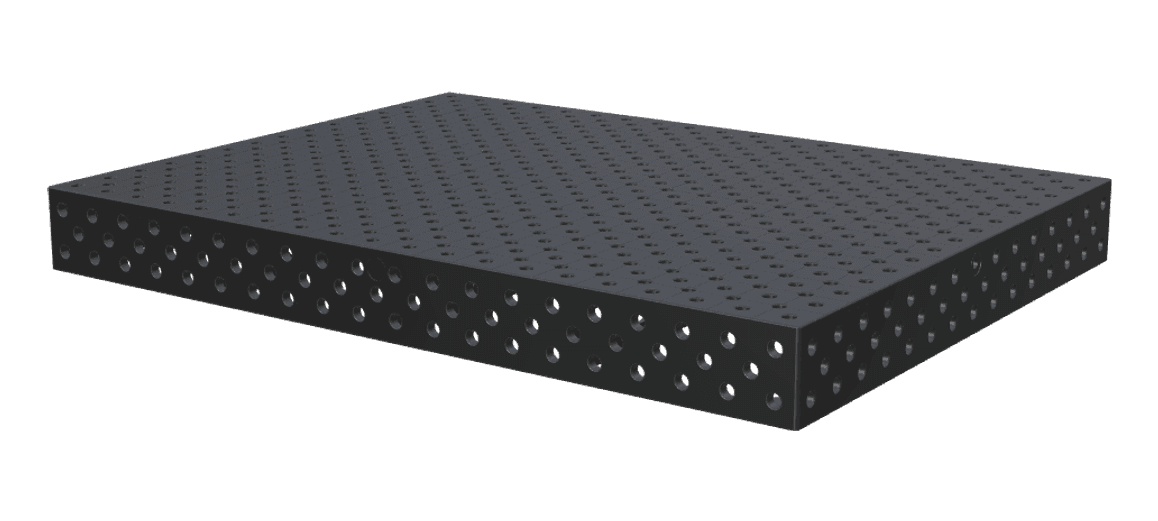

Ø28mm Welding Table 2000×1500 mm
From€3.981excl. VAT

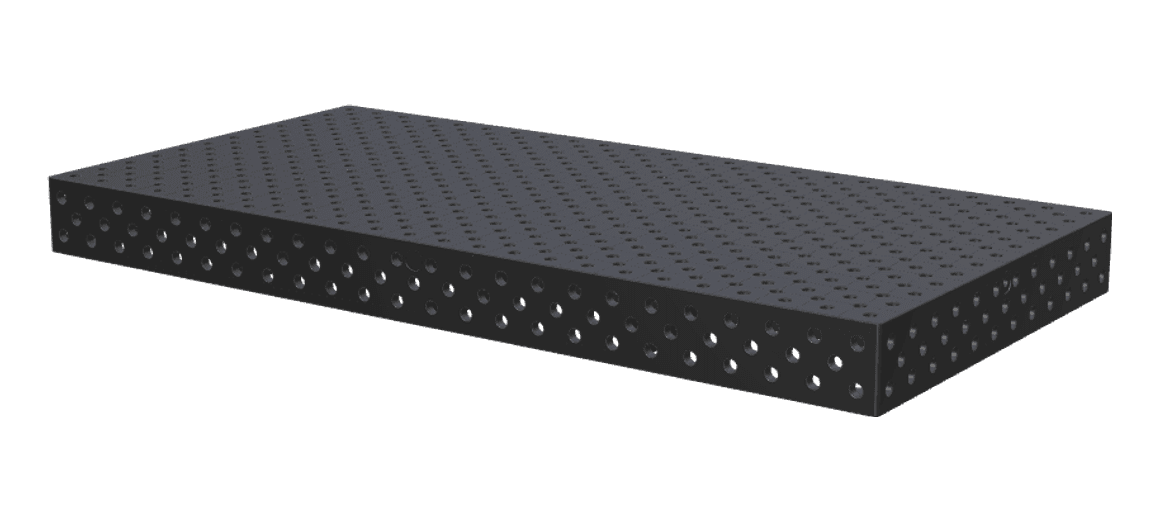

Ø28mm Welding Table 2400×1200 mm
From€3.947excl. VAT

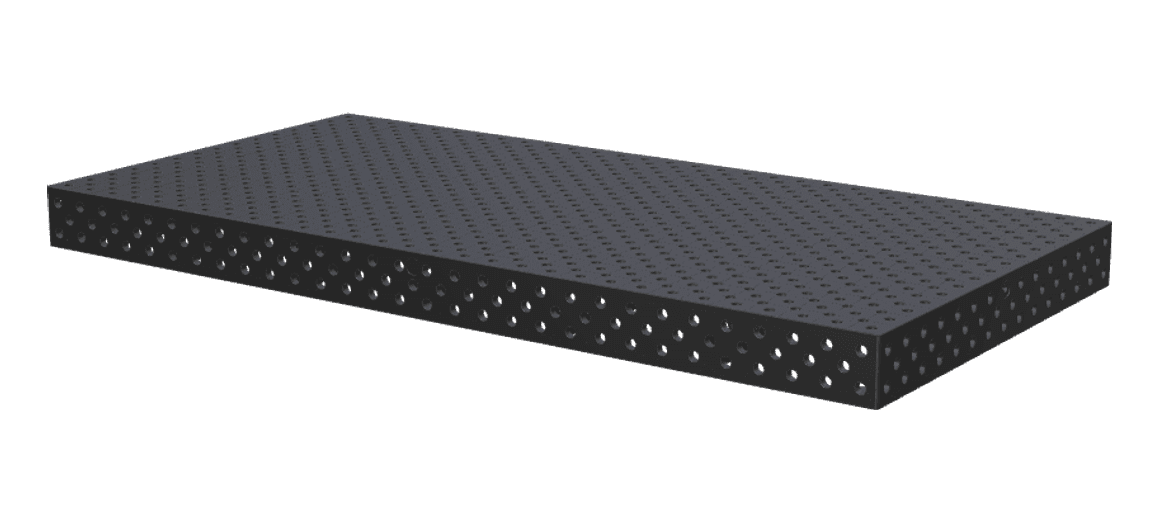

Ø28mm Welding Table 3000×1500 mm
From€5.980excl. VAT

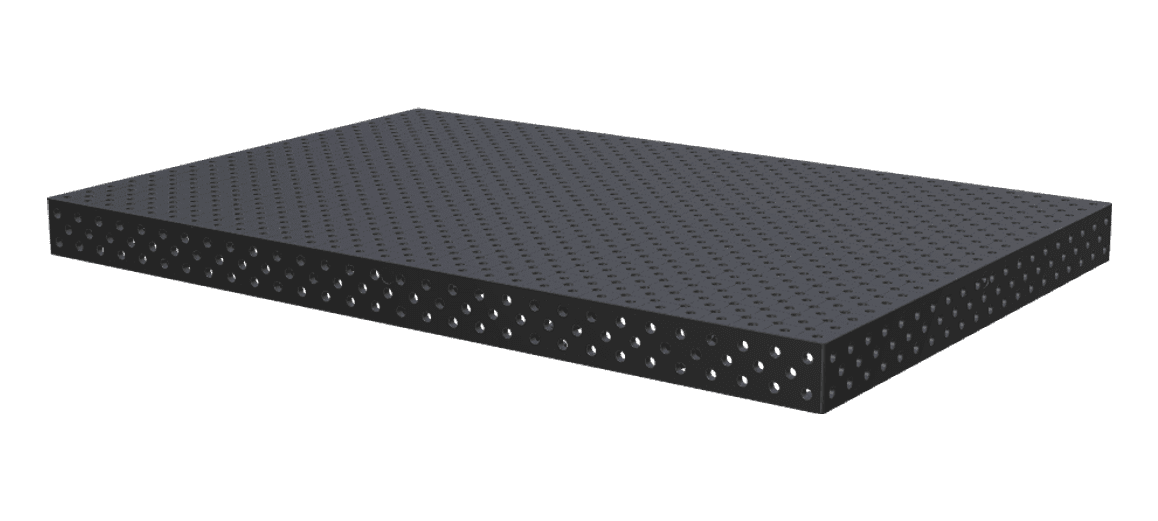

Ø28mm Welding Table 3000×2000 mm
From€6.989excl. VAT

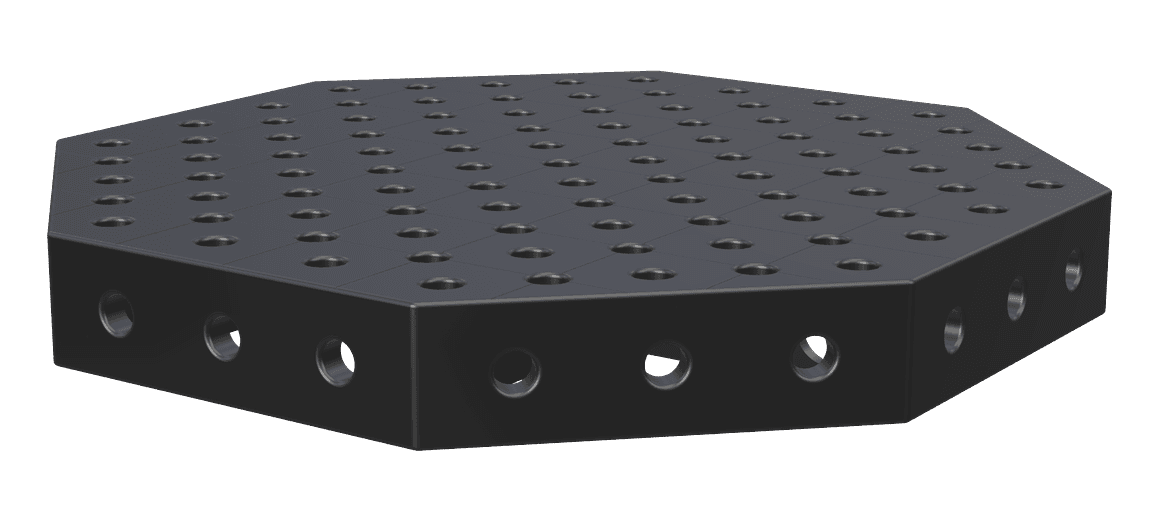

Ø28mm Octagonal Welding Table 800×800 mm
€2.790excl. VAT

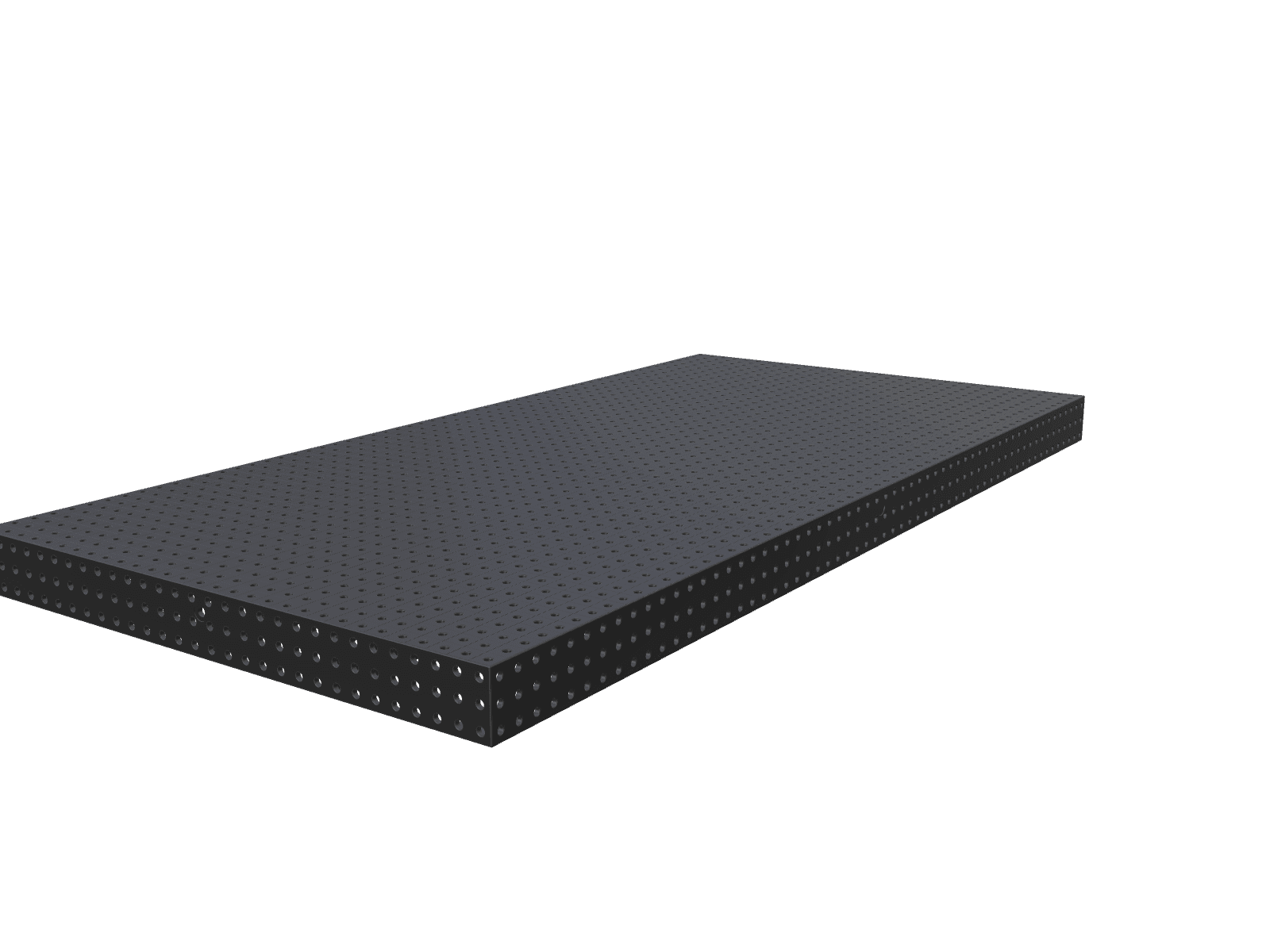

Ø16 System Welding Table 3000×1500×150
