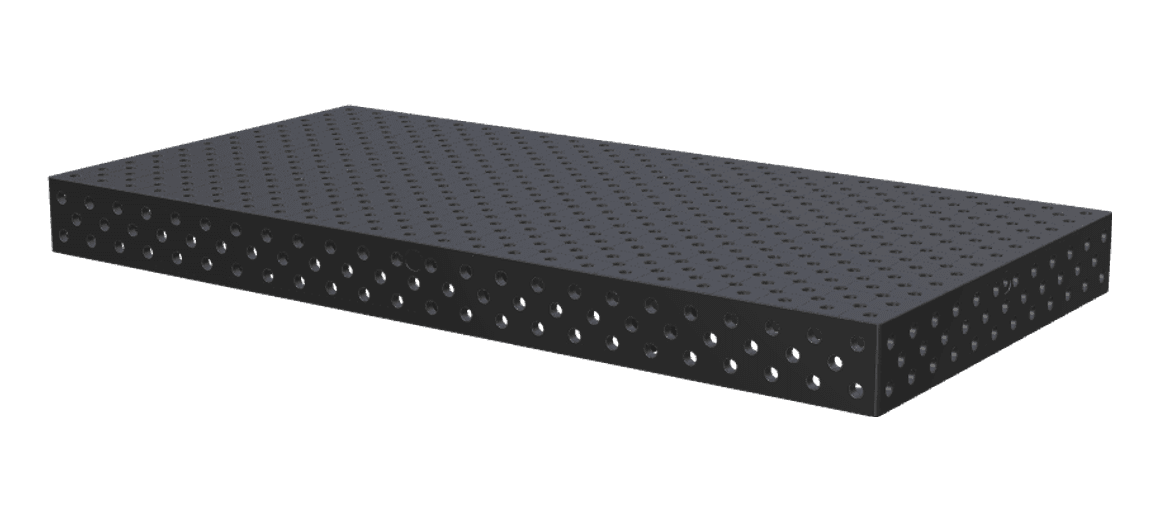

The classic industrial format of 2400 × 1200 mm, matched to the standard plate size so sheets and large frames sit on the table without overhang. For many workshops the fixed standard table for daily production work. CNC-milled from solid S690QL and gas-nitrided to 800 HV. Gas nitriding is not a coating but a hardening deep into the steel, resistant to intensive and repeated clamping without wearing the grid. Fully Ø28mm-compatible with Siegmund, so your clamping tools fit directly. With Demmeler everything fits except the clamping bolts. We supply this size with the DG grid: diagonal holes between the grid, for 60% more clamping options. Choose legs and a tool set below; the image shows your table straight away as you configure it.
Add a tool setNo set
Please select all options to continue.
Website prices are always the lowest, excl. VAT. EU businesses outside NL pay 0% VAT (reverse charge).
| Material | S690QL high-grade steel |
| Nitriding | Gas-nitrided (800 HV) |
| Dimensions | 2400 × 1200 mm |
| Legs | 4 height-adjustable legs |
| Model | M800 |
| Hole Diameter | Ø28 mm |
| Grid Spacing | 100 mm center-to-center |
| Material Thickness | 25 to 27 mm |
| System | Ø28 mm |
Frequently asked questions
Our Ø28mm welding tables are made from high-grade S690QL steel, gas-nitrided to 800 HV surface hardness. This results in an extremely hard and wear-resistant surface that lasts for years.
EG (single hole) has one hole per 100×100 mm grid cell. DG (double hole) has diagonal holes relative to the EG pattern, providing 60% more clamping options. You can see the difference directly in the 3D model.
Yes. The Ø28mm grid works in both directions: DCT clamping tools fit Siegmund and Demmeler tables, and their accessories fit DCT tables. The only exception: clamping bolts are not interchangeable between DCT and Demmeler. You can continue using your existing tooling.
Some other brands apply an additional oxide layer after nitriding, giving a dark colour. DCT tables are gas-nitrided without any additional coating: the hardness is in the steel itself, up to 1 mm deep. The lighter colour is not a sign of less treatment.

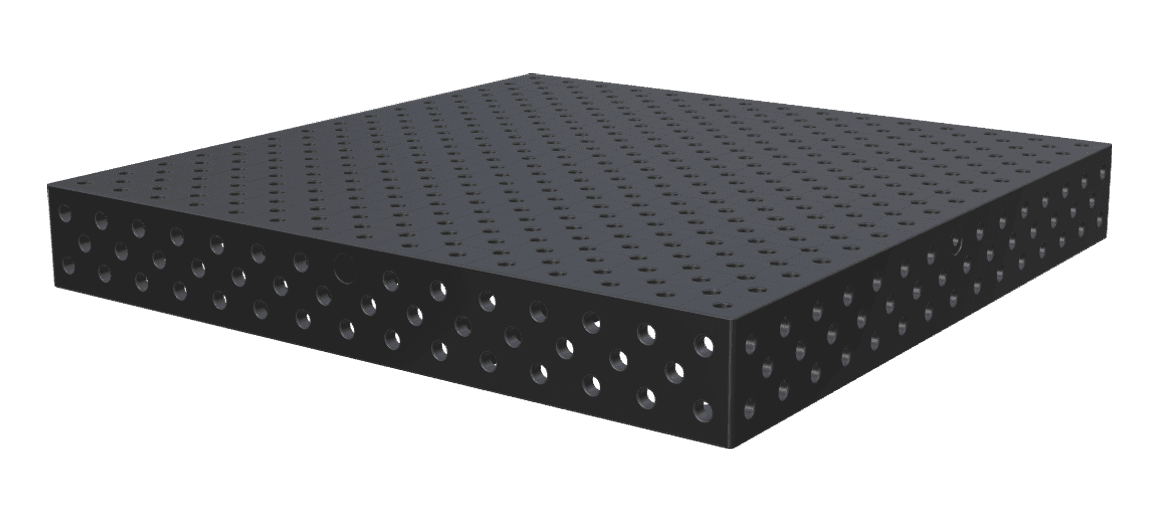

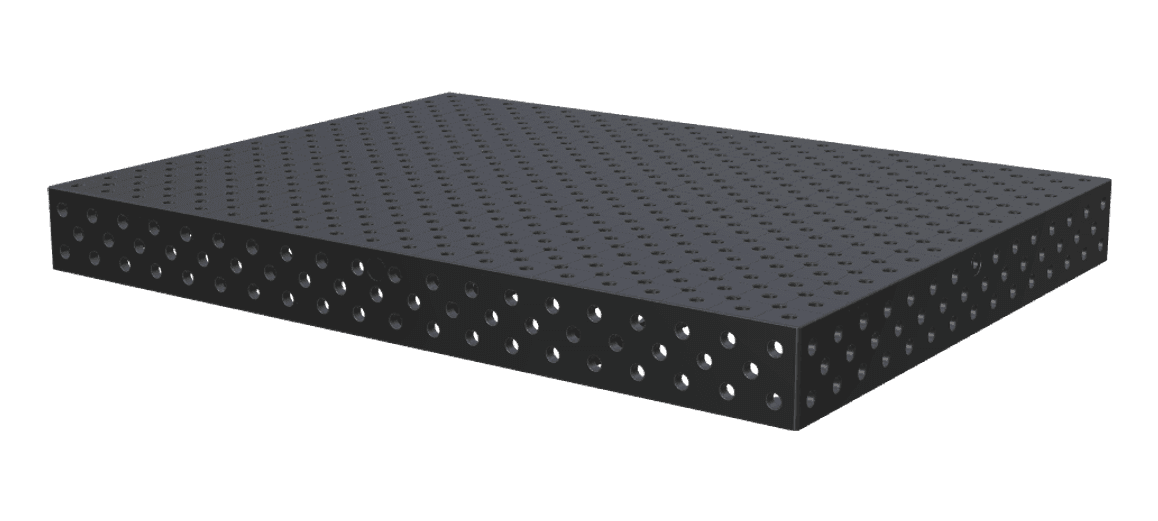

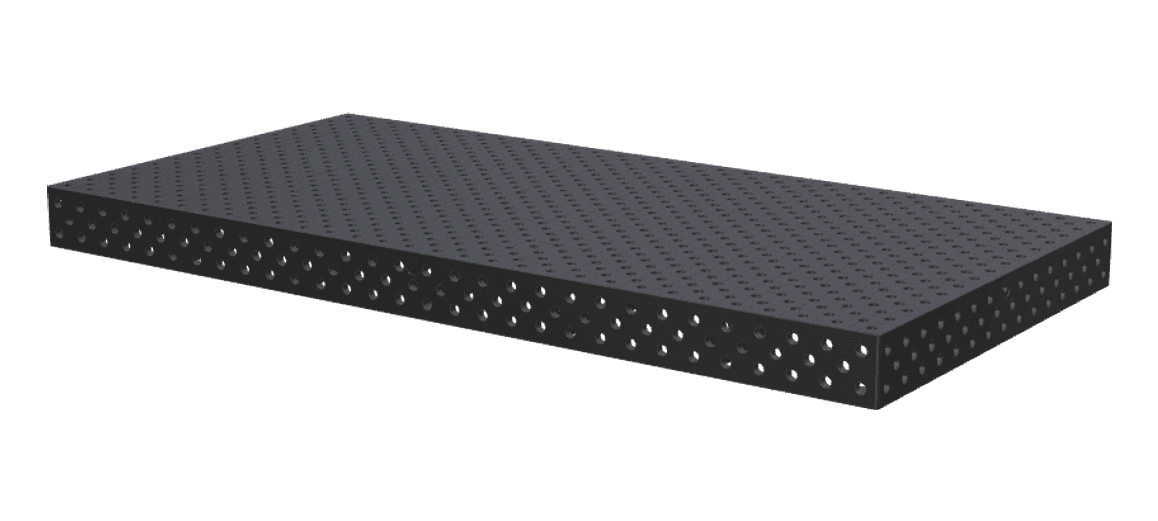

Available from 1000x1000 mm to 3000x2000 mm, in EG and DG configuration. All Ø28mm tables are M800 (S690QL, 800 HV). Custom sizes are available on request.
Tables in stock are typically dispatched within 1 business day. In the Netherlands they are often with you within 24 hours. To the rest of Europe, orders are typically in transit within 1–2 business days.
